一、用途：ZQB系列瀝青混凝土拌和機可拌合新瀝青混合料；又可對舊瀝青混合料在生；以及對堆放、儲存的瀝青混合料加熱、拌合，重新利用。電啟動柴油發電機解決野外作業沒有常用電源。瀝青混凝土拌和機可隨時隨地對路面出現的坑槽進行現場修補，作業結束后便可通行，確保道路完好暢通。特別是在寒冷的冬季其作用更為突出。

二、主要結構：

ZQB系列瀝青混凝土拌和機與電啟動柴油發電機組成，其結構形式有；

1、配有后橋制動、三角架牽引為拖拉式；

2、需要施工作業吊裝在運輸車上為車載式及固定式三種方式；

三、性能特點：

（一）、拌合方式：ZQB系列瀝青混凝土拌和機利用帶有保溫層旋轉的滾筒內葉片進行拌合；滾筒旋轉采用擺線針輪減速機帶動齒輪驅動，每次拌合量不少于1000㎏。

（二）、加熱方式：采用世界名牌兩段火柴油燃燒器加熱，對滾筒內的氣體加熱升溫；氣體的溫度傳遞給瀝青混合料，其溫度由溫度傳感系統控制，達到需要溫度時燃燒器停止燃燒。

（三）、上料方式：1、上料軌道可折疊，上料斗為底卸式，其容量為300㎏/次;提升采用多功能電動提升機，由行程開關限位。2、液壓助力上料方式。

（四）、除塵方式：采用旋風除塵系統，由離心式通風機將滾筒內的粉塵、水蒸氣排出。

（五）、供電方式：若不能接外界電源，配有電啟動柴油發電機組；發電機組的機架下面有四組二級橡膠減震機構，運轉十分平穩以防止振動機件及電器損壞。

（六）、整機采用多功能電器控制系統，一目了然，操作簡單。

四、注意事項

數字調溫（左上角），通電后一定要先運行攪拌系統，點火器在通電后15秒自動開啟，在室內操作時應注意通風，將有毒氣體排出室外，保證安全。

《1》Use: ZQB series asphalt concrete mixer can mix new asphalt mixture; It can also be used for raw asphalt mixture; And heating, mixing and reuse of piled and stored asphalt mixture. Electric-started diesel generators solve field operations without a common power source. Asphalt concrete mixer can repair the potholes on the road surface at any time and anywhere, and can pass after the completion of the operation to ensure that the road is intact and smooth. Especially in the cold winter its role is more prominent.

Main structure:

《2》The ZQB series asphalt concrete mixer is composed of electric starting diesel generator, and its structure forms are as follows;

1, equipped with rear axle brake, tripod traction for drag;

2, The construction work needs to be hoisted on the transport vehicle in three ways: vehicle-mounted and fixed;

《3》performance characteristics:

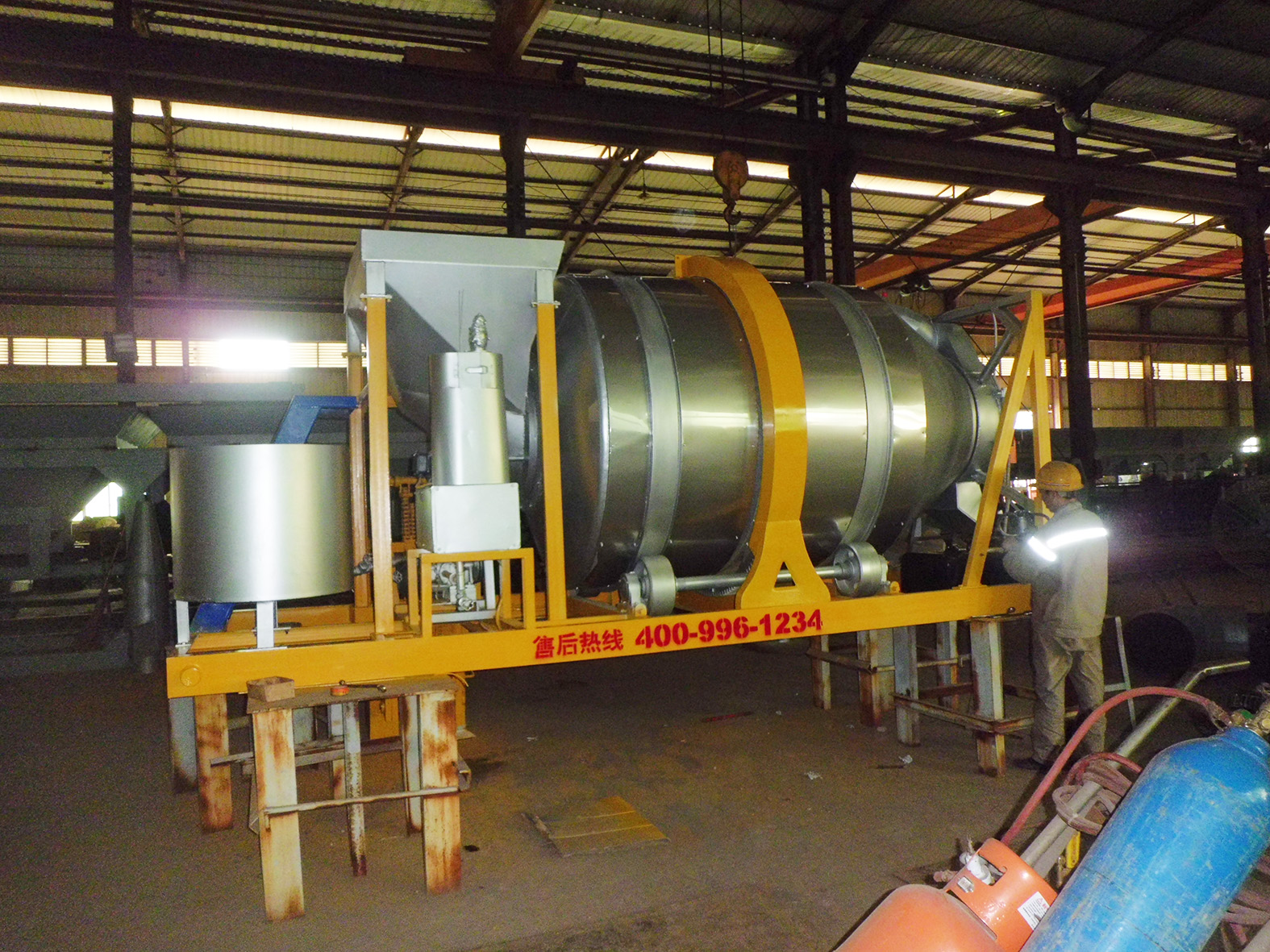

(1) Mixing method: ZQB series asphalt concrete mixer uses the inner blade of a rotating drum with a thermal insulation layer to mix; The rotation of the drum is driven by the cycloidal pin gear reducer, and the mixing volume is not less than 1000㎏ each time.

(2) Heating method: the world famous two-stage fire diesel burner is used to heat up the gas in the cylinder; The temperature of the gas is transferred to the asphalt mixture, and its temperature is controlled by the temperature sensing system, and the burner stops burning when the required temperature is reached.

(3) Feeding method: 1, the feeding track can be folded, the upper hopper is the bottom unloading type, its capacity is 300㎏/ time; The lift adopts multi-functional electric hoist, which is limited by the stroke switch. 2, hydraulic power feeding method.

(4) Dust removal method: The cyclone dust removal system is used, and the dust and water vapor in the cylinder are discharged by the centrifugal fan.

(5) Power supply mode: If it cannot be connected to external power supply, it is equipped with electric starting diesel generator set; Under the frame of the generator set, there are four sets of two-stage rubber shock absorption mechanism, which runs very smoothly to prevent vibration parts and electrical damage.

(6) The whole machine adopts multi-functional electrical control system, which is clear and simple to operate.

《4》} Precautions

Digital temperature control (upper left corner), after the power must run the stirring system, the igniter in 15 seconds after the power automatically open, indoor operation should pay attention to ventilation, the toxic gas discharged outdoors, to ensure safety.
